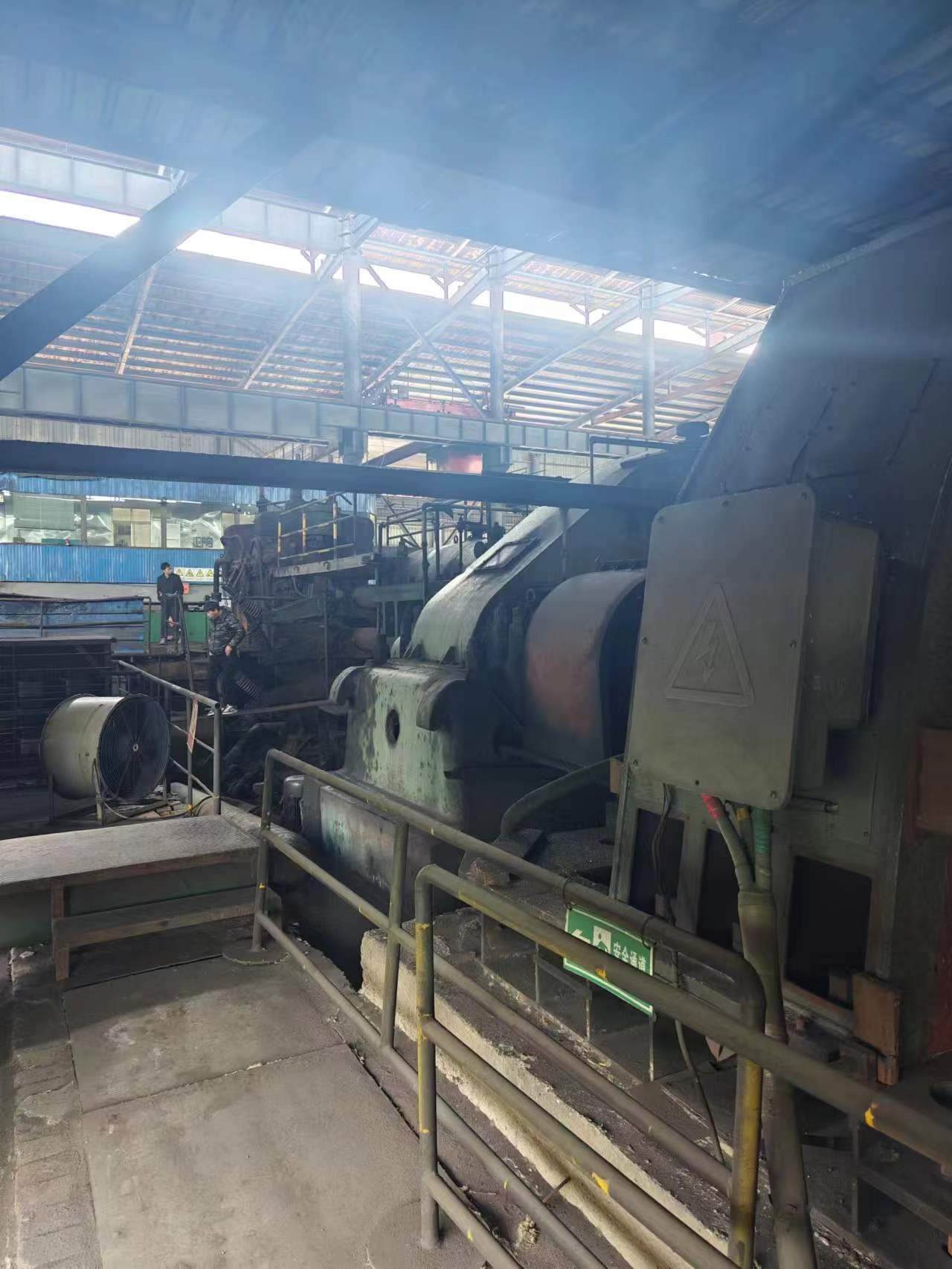

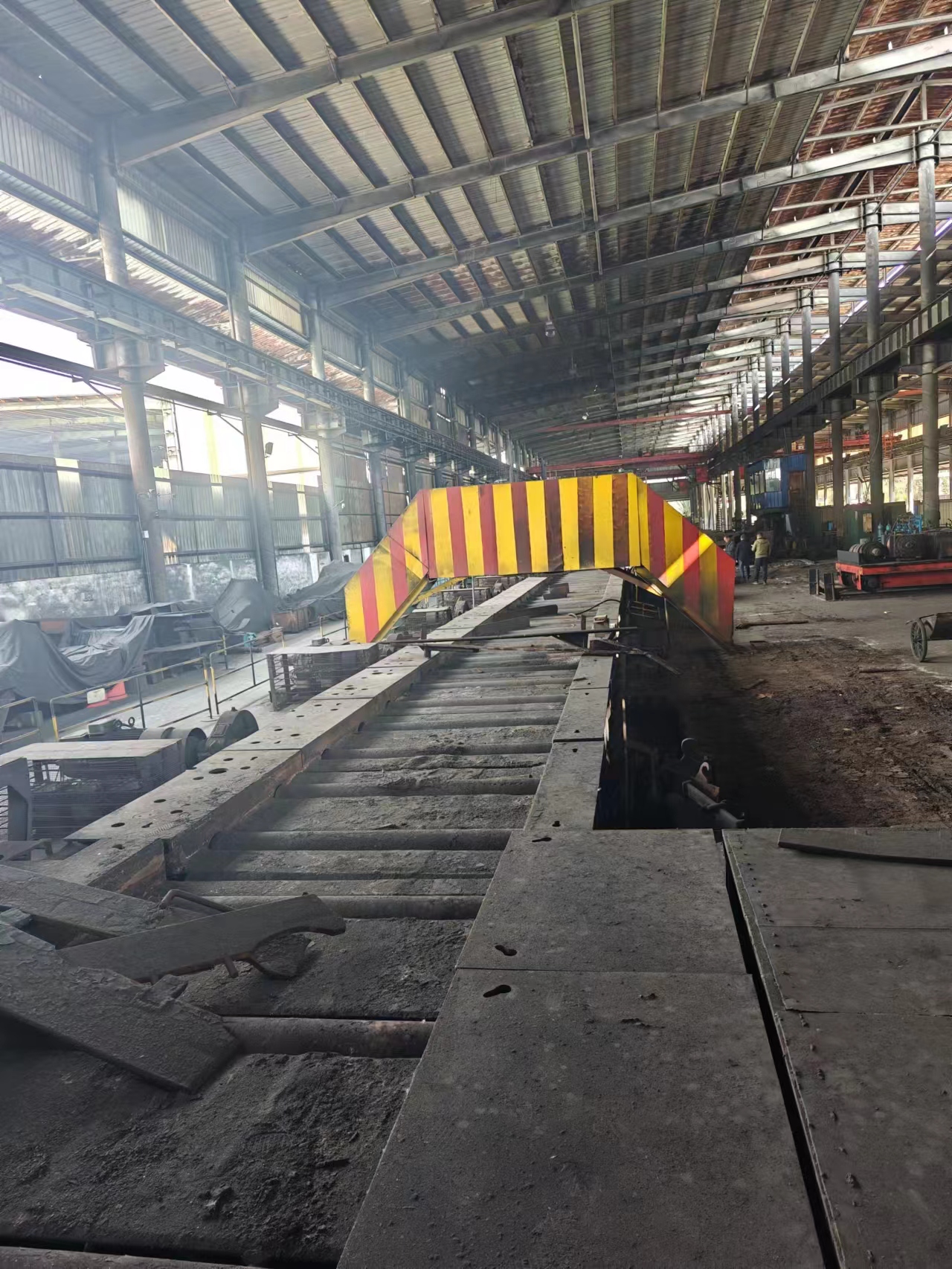

Second Hand Narrow Strip Hot Rolling

1. Strategic Production Capabilities

This hot rolling steel strip mill delivers 300,000 tons/year of premium narrow-gauge coils (136–430mm width), equally split between cold-rolled feedstock and commercial hot-rolled steel. Engineered for specialized applications, it processes carbon structural steel (GB/T700-2006), low-alloy steel (GB/T1591-2008), and high-grade alloys with unmatched efficiency.

2. Technical Specifications

Finished Product Parameters

Material Standards Compliance

• Carbon Steel: GB/T700-2006, ASTM A569

• Alloy Steel: GB/T1591-2008, EN 10025

3. Core Equipment Advantages

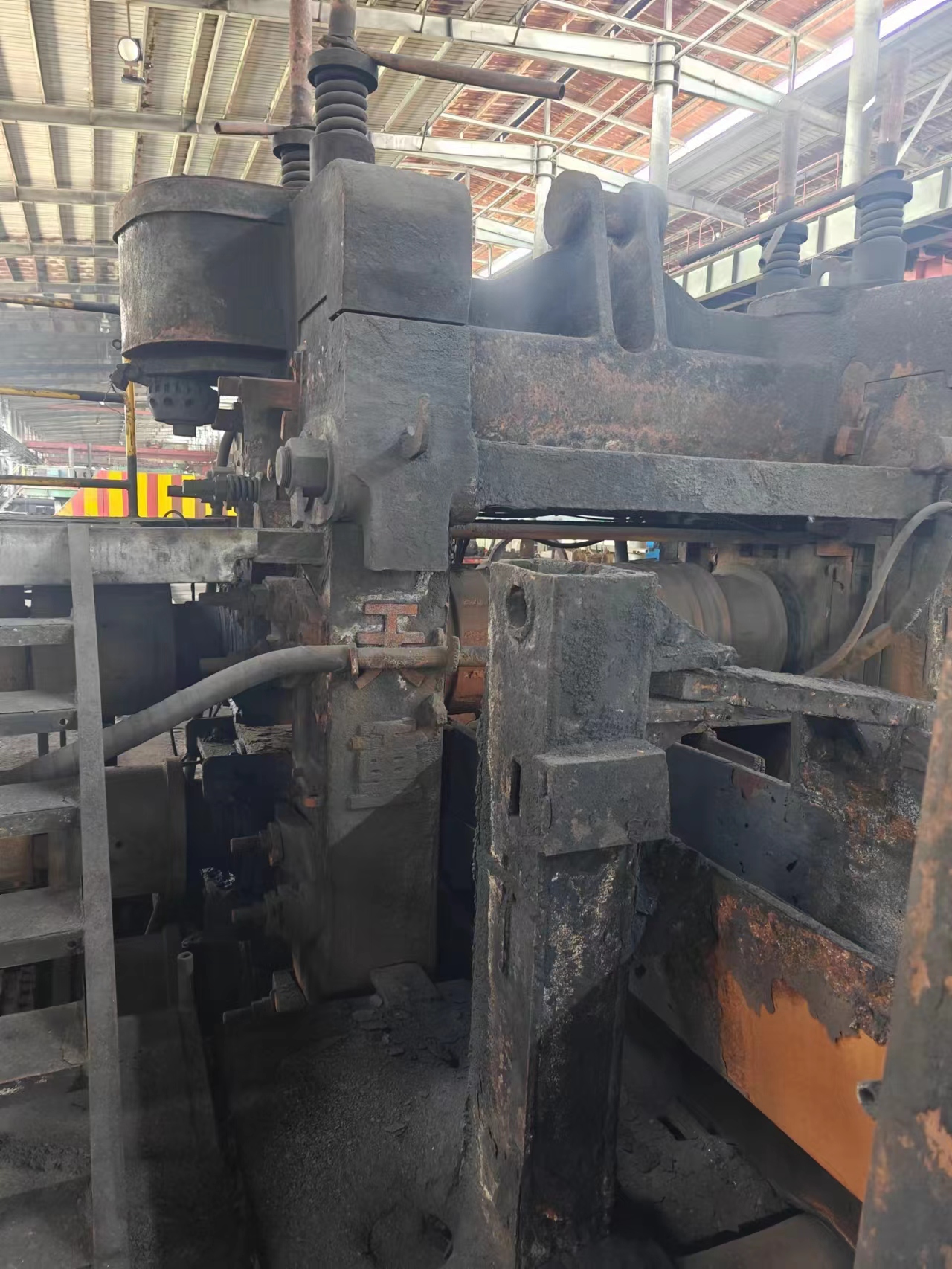

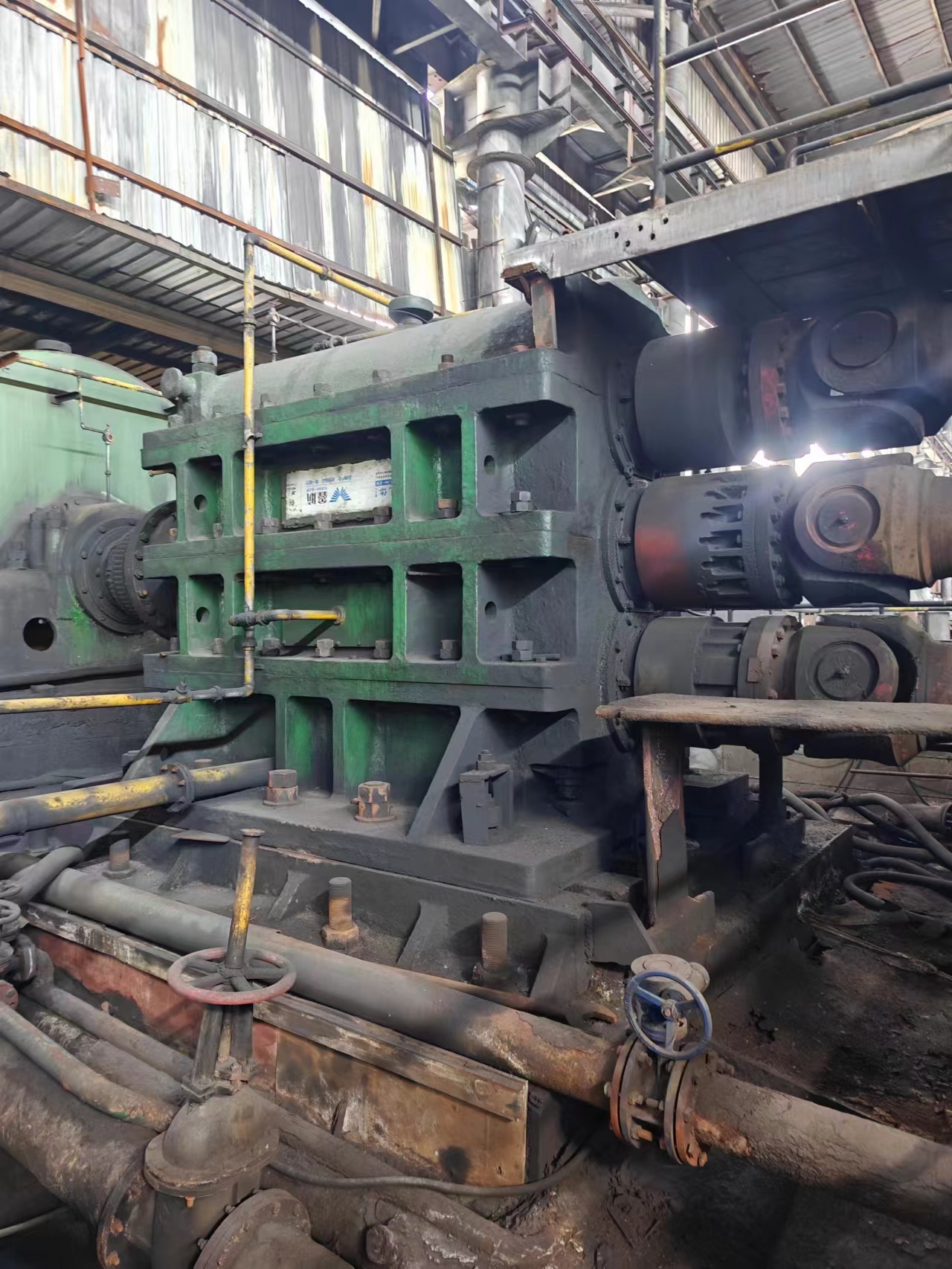

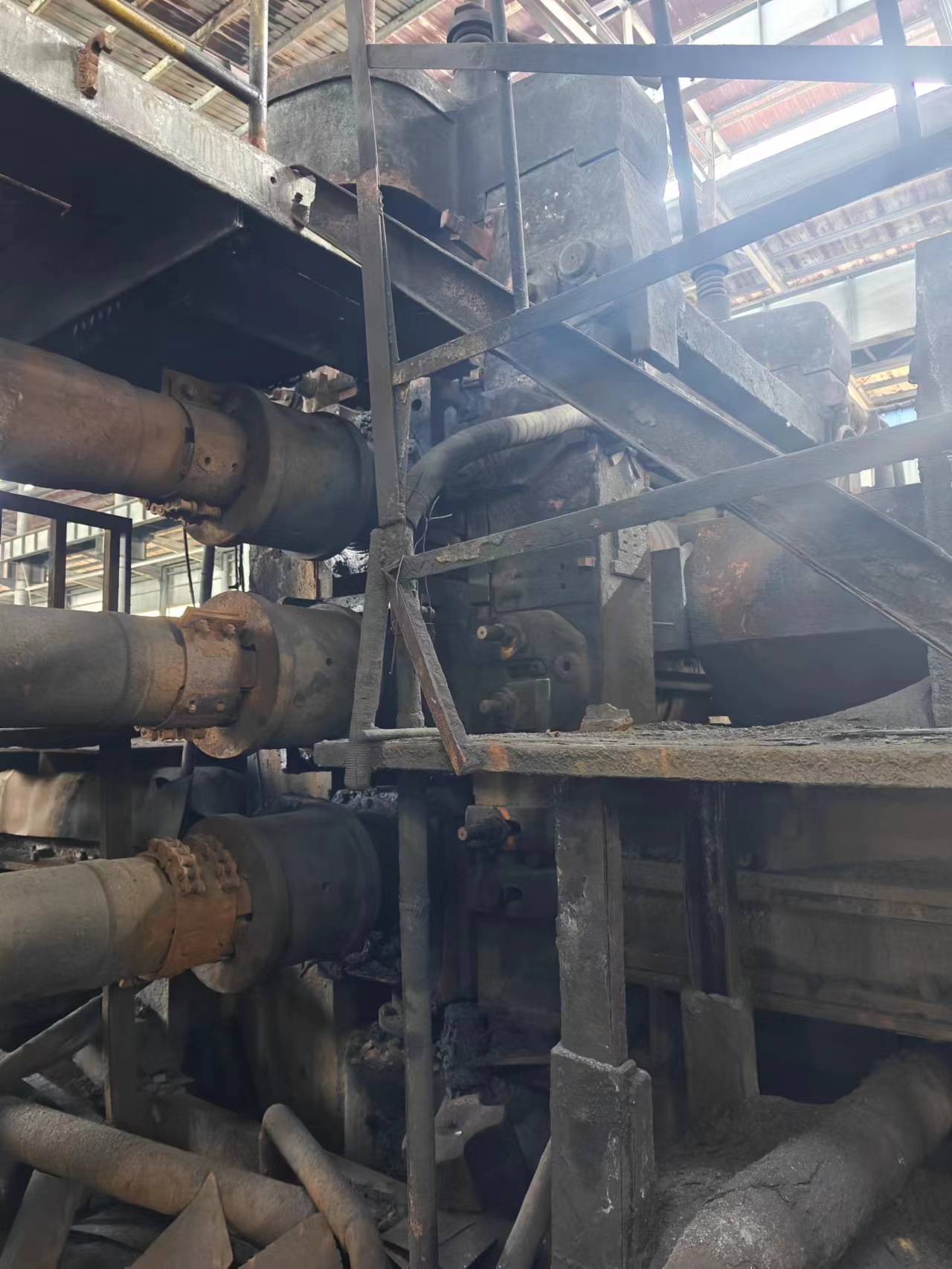

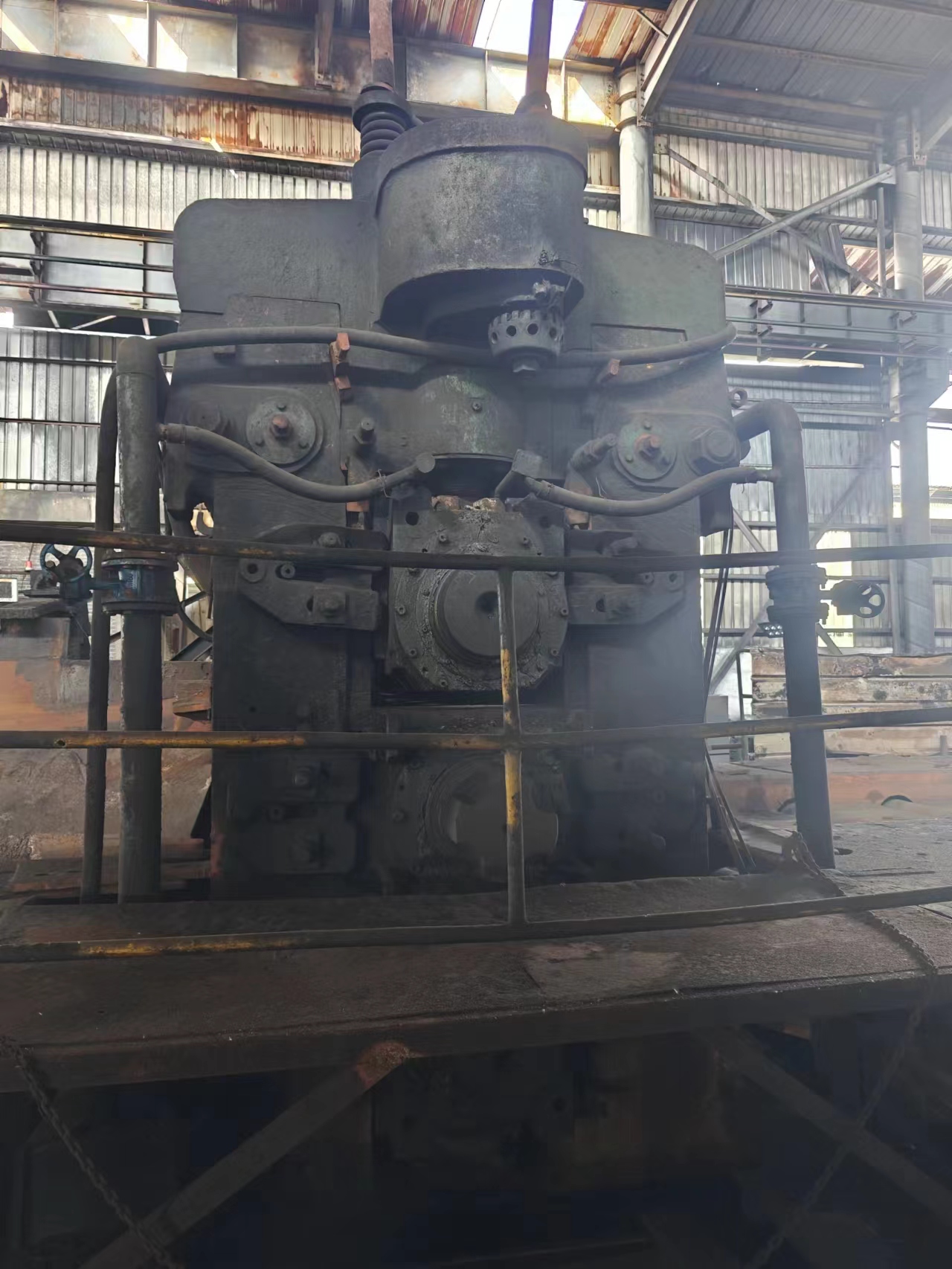

Revitalized Mill Architecture

• Type: Used narrow strip hot rolling system with 650mm processing width

• Rolling Temperature: 1100–1250°C (above recrystallization)

• Throughput: 12 m/sec exit speed (30% faster than conventional mills)

Precision Engineering

• Thickness Control: Hydraulic AGC (±0.1mm deviation)

• Width Stability: Laser-guided AWC (±0.5mm edge control)

• Surface Integrity: High-pressure descaling + roll polishing

4. Refurbishment Excellence

Component Renewal

• Critical Upgrades:

• Roll stacks reground to ±5μm precision

• Siemens TDC automation retrofit

• 1250kW AC drives recalibrated to OEM specs

• Durability Enhancements:

• Work rolls: High-chrome iron (HSD 750)

• Backup rolls: Forged 70Cr3NiMo alloy

Quality Validation

• 500-hour stress test simulating 3-ton coil production

• SIL-3 safety certification for roll gap protection

• ISO 9001-compliant refurbishment protocols

5. Economic & Operational Benefits

Cost Efficiency

Deployment Advantages

• Production-Ready: Commissioned within 45 days

• Space Optimization: 40% smaller footprint vs wide-strip mills

• Sustainability: 70% lower embodied carbon vs new manufacturing

6. Industry Application Scenarios

• Automotive: 2.0mm suspension components (SAE 1548)

• Electrical: 1.5mm transformer cores (GB/T 2521)

• HVAC: 3.0mm galvanized ducting (ASTM A653)

7. Technical Support Ecosystem

Pre-Sales Services

• Material trial coordination

• Factory layout optimization

Post-Commissioning Support

• 24/7 remote monitoring (IoT-enabled)

• 18-month mechanical warranty

• 10-year spare parts guarantee

Why Choose This Solution?

• Niche Specialization: Only 650 mm strip steel mill engineered for 136–430mm widths

• Future-Proofing: Compatible with Industry 4.0 upgrades (OPC UA/Profinet)

• Risk Mitigation: Eliminates new-equipment commissioning delays
