The 950mm Rewinding Line is a second-hand industrial line designed for the rewinding, tension leveling, surface inspection, and light slitting of cold-rolled steel strips. It was originally commissioned in 2012 and remained in continuous operation until its shutdown in 2026. The equipment is now available for resale as a cost-effective solution for small to medium-sized steel processing plants, metal service centers, or export projects targeting developing markets.
The line is complete and has been well maintained throughout its service life. Multiple on-site photographs are available, showing the main components including the uncoiler, recoiler, motor cabinets, control panel, strip guiding system, and the overall line layout. The equipment is offered in as-is, where-is condition, with optional disassembly and refurbishment services available upon request.
| Parameter | Value | Remarks |
|---|---|---|
| Average Annual Output | 4,500 tons | Based on actual production records |
| Commissioning Year | 2012 | Original installation |
| Shutdown Year | 2026 | End of service at original plant |
| Maximum Coil Weight | 16 tons | Suitable for standard cold-rolled coils |
| Maximum Line Speed | 160 m/min | Stable speed for rewinding and inspection |
| Recoiling Motor Power | 315 kW | Main drive for rewinding section |
| Uncoiling Motor Power | 110 kW | Provides back tension control |
| Material Width Range | Up to 950 mm | Designed for medium-width strips |
| Coil Inner Diameter | Standard 508 mm / 610 mm (typical) | To be confirmed on site |
| Control System | Local manual / basic automation | Simple and easy to operate |
Note: Some parameters such as exact inner diameter range and control details can be confirmed during physical inspection.
The rewinding line consists of the following major units:

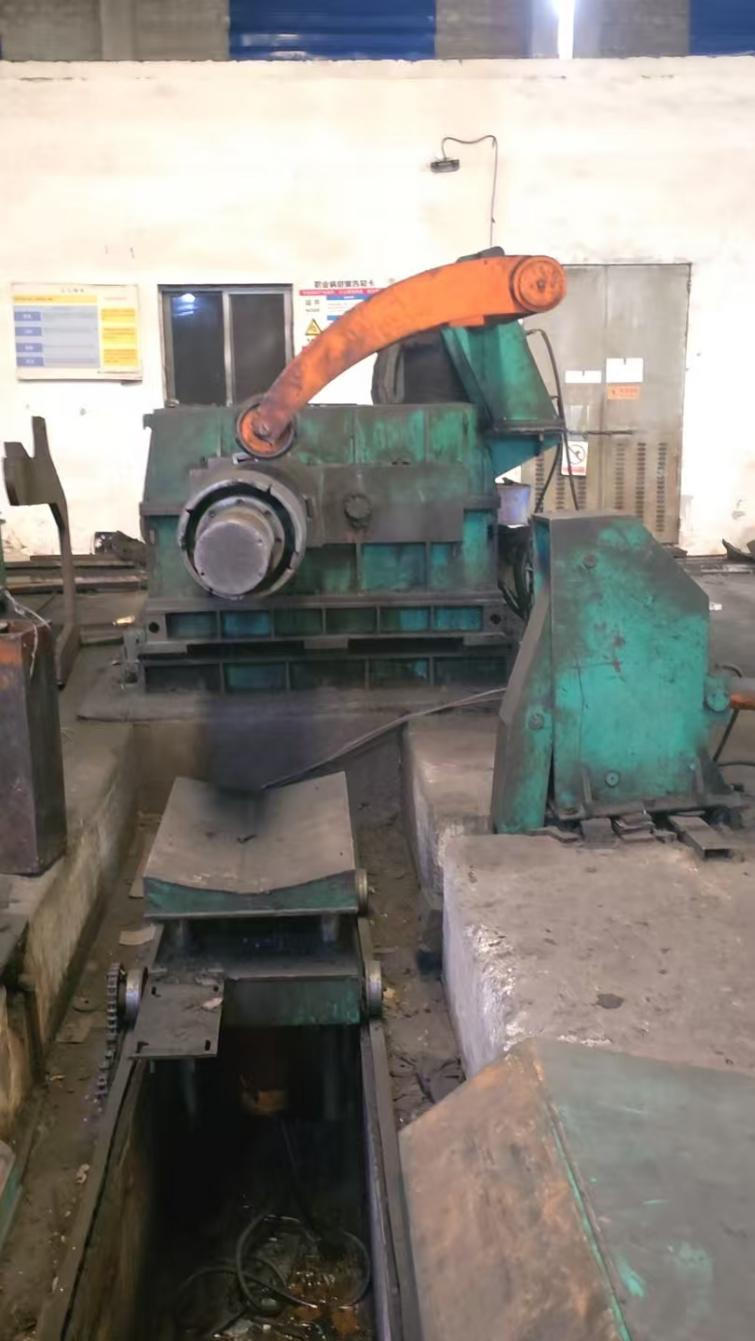

Uncoiler (Pay-off Reel)
Driven by a 110 kW motor
Provides adjustable back tension
Suitable for coils up to 16 tons

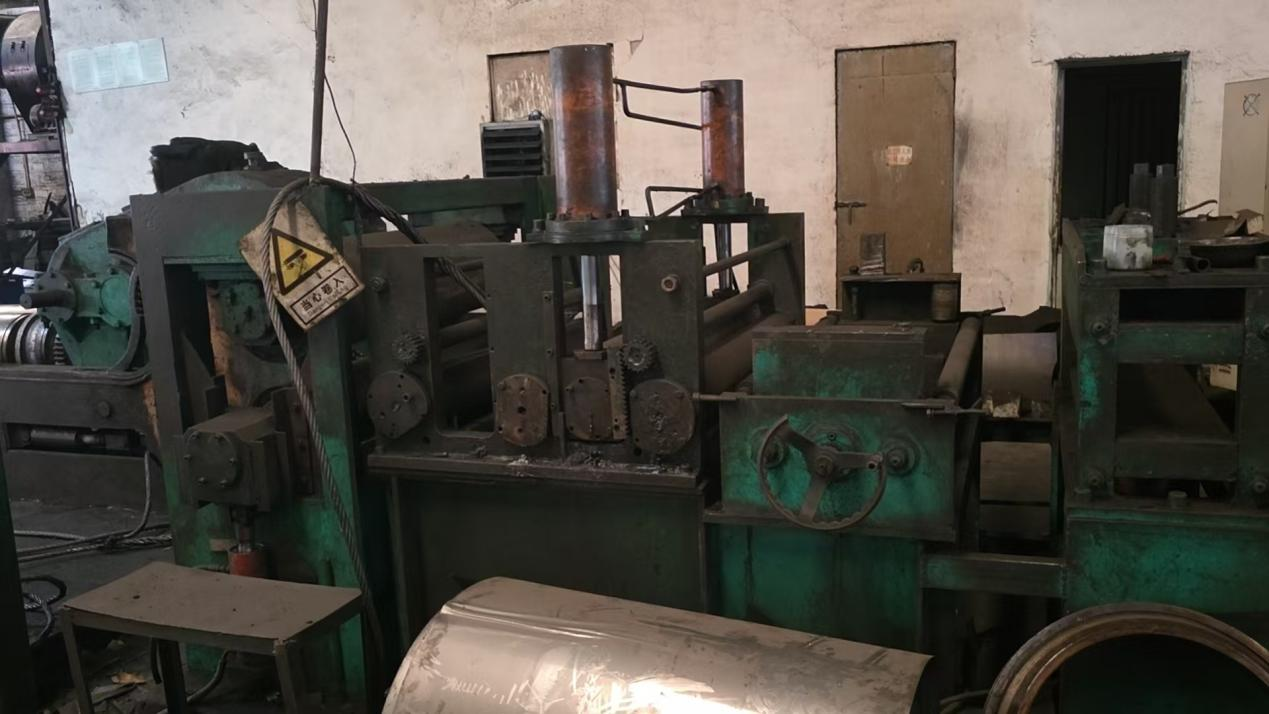

Pinch Roll & Straightener Unit
Flattens the strip before rewinding
Improves strip shape and surface quality
Side Guide & Strip Tracking System
Ensures proper alignment during rewinding
Reduces edge damage and telescoping
Main Recoiler (Rewinding Unit)
Driven by a 315 kW motor
Capable of producing tightly wound coils
Solid drum design for stable operation

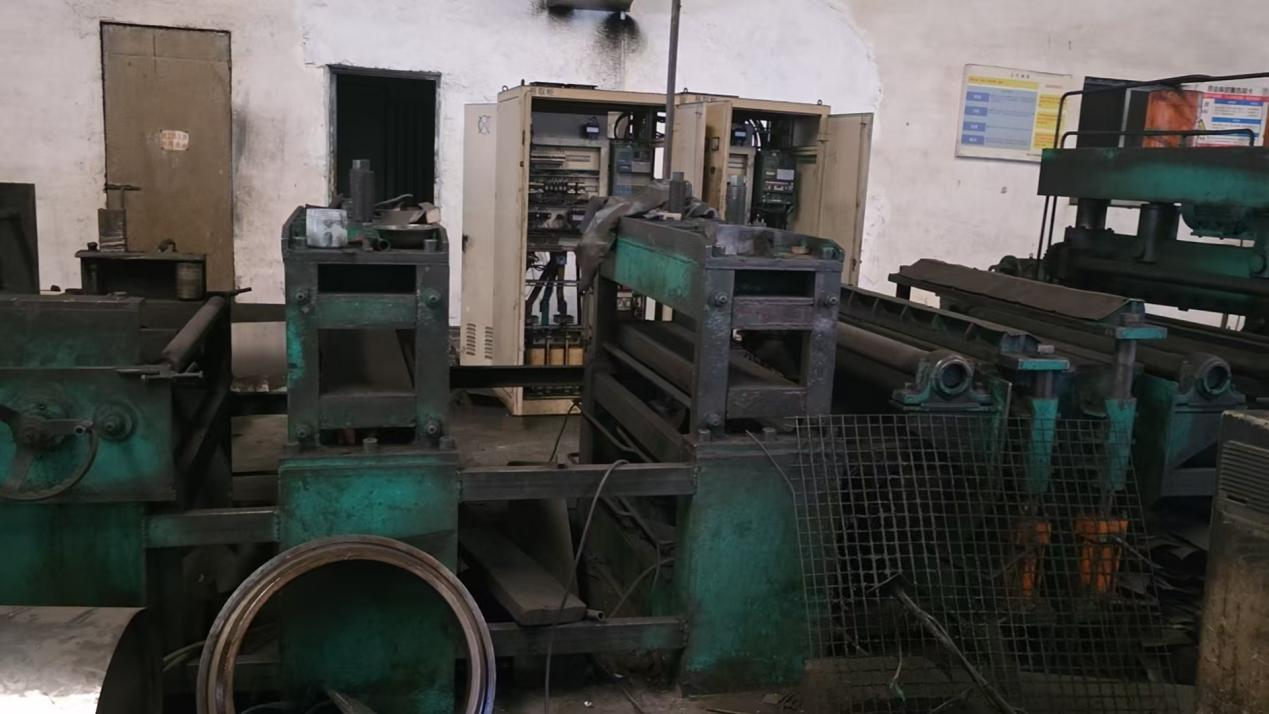

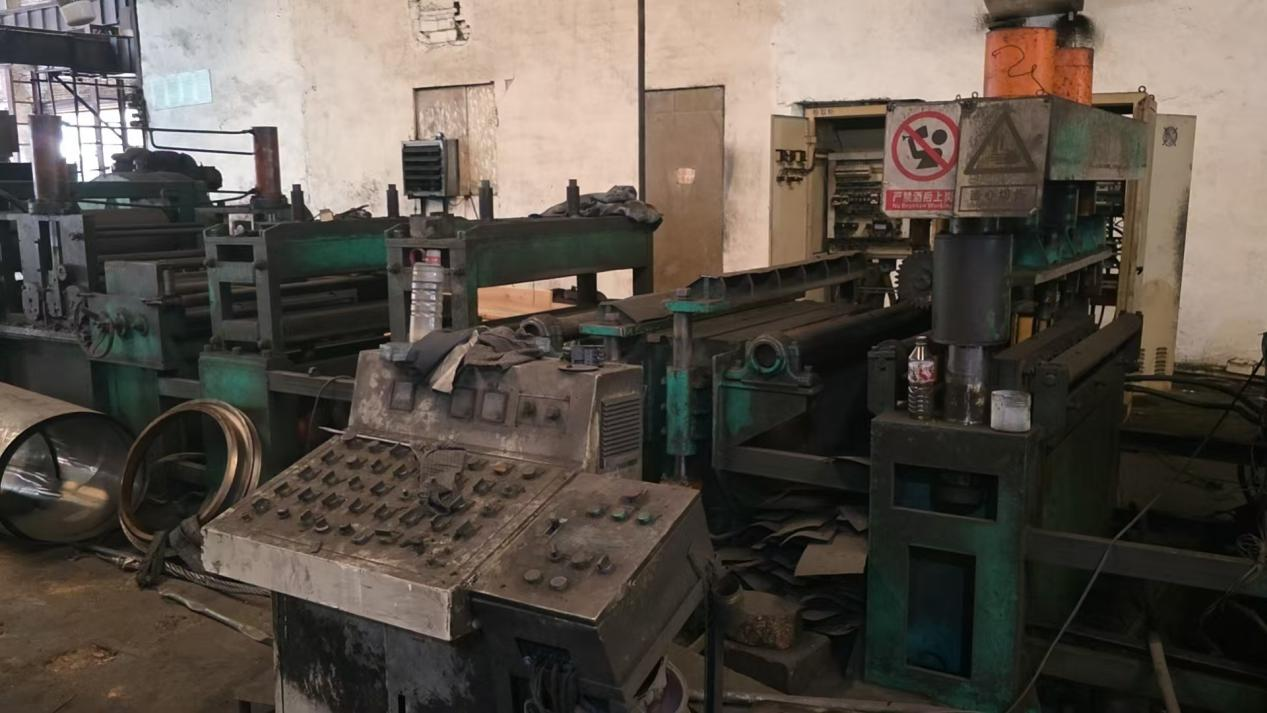

Electrical Control Panel
Local push-button and basic automation
Simple interface, easy to maintain
Auxiliary Equipment
Coil loading car (uncoiler side)
Coil unloading car (recoiler side)
Manual banding station
With an average annual output of 4,500 tons, this rewinding line is well suited for medium-volume production environments. It can handle the typical output of a small cold rolling mill or serve as a dedicated rewinding and inspection line for a metal service center. The output level is realistic and based on actual production data, not theoretical design values.
The line supports coils up to 16 tons, which is significantly higher than many comparable second-hand lines in the same width class. This allows operators to process longer coils, reduce the number of coil changes, and improve overall line efficiency. Fewer coil changes also mean less downtime and lower labor costs.
The 315 kW recoiling motor provides strong torque and stable tension control, even when rewinding high-strength materials or larger coils. The 110 kW uncoiling motor ensures smooth back tension, preventing strip slippage or uneven winding. This motor configuration is robust and reliable for daily industrial use.
A maximum line speed of 160 m/min is neither too fast for safe operation nor too slow to limit productivity. It strikes a practical balance, allowing operators to perform visual surface inspection during rewinding while maintaining reasonable throughput. For most rewinding and inspection tasks, this speed is more than adequate.
The line was shut down in 2026, meaning it was in active use until recently. This provides confidence that the equipment was maintained and operational. More than 10 high-resolution on-site photos are available, showing:

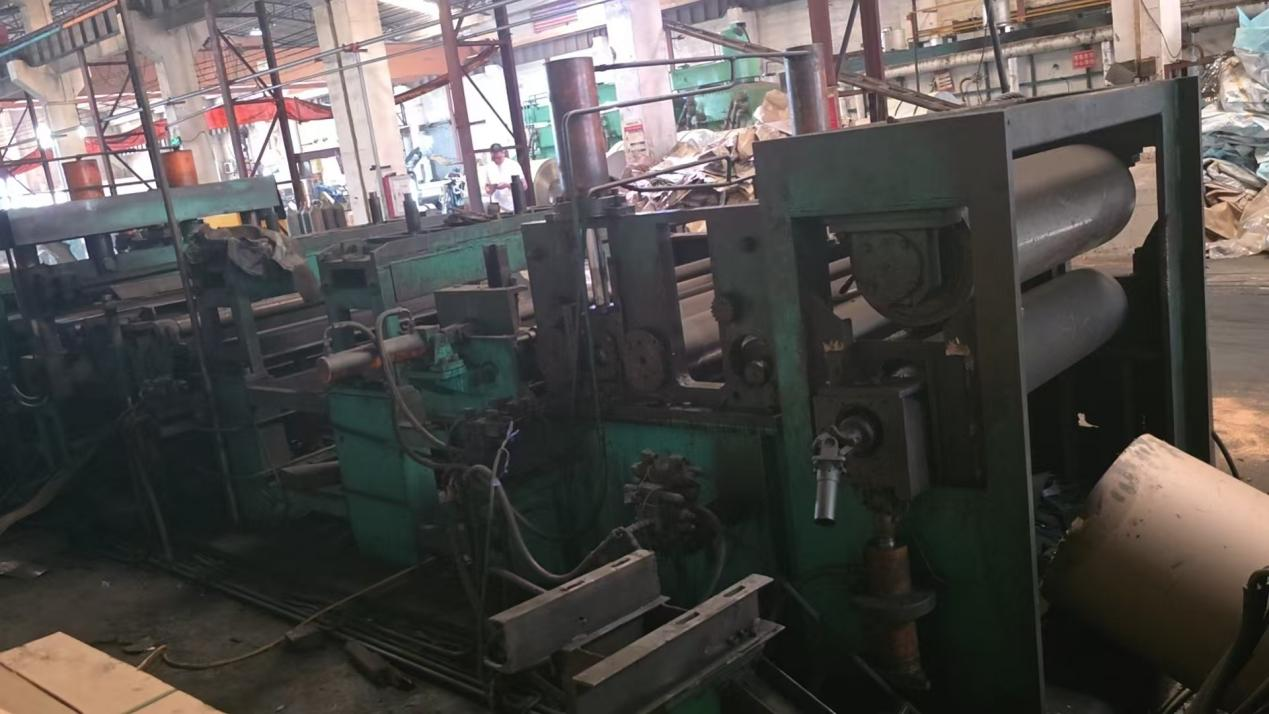

Overall line view
Uncoiler and recoiler units
Motor nameplates
Control panels
Strip guiding system
Coil loading/unloading cars
These photos allow potential buyers to visually assess the equipment before committing to a site visit.
Keepwin Industry offers the following optional services for this rewinding line:
Disassembly and loading (cost to be confirmed based on location)
Refurbishment and cleaning (cost to be confirmed)
Basic commissioning support (cost to be confirmed)
Spare parts list (available upon request, details to be confirmed)
These services make it easier for buyers to integrate the line into their existing facilities, especially for first-time second-hand equipment buyers.
| Aspect | This Second-Hand Line | New Equivalent Line |
|---|---|---|
| Purchase Cost | Significantly lower | High |
| Delivery Time | Short (ready for disassembly) | Long (manufacturing lead time) |
| Depreciation | Already depreciated | Starts from year one |
| Spare Parts | Readily available (common components) | May require proprietary parts |
| Maintenance Complexity | Simple, local control | May require specialized engineers |
| Risk | Transparent, visual inspection possible | Unknown field performance |
For many small-to-medium enterprises, a well-maintained second-hand line like this one offers the best value for money.
Cold-rolled mild steel (MS)
Quality carbon steel strips
Other metal strips up to 950mm width
Rewound coils for further processing
Inspected and defect-marked coils
Lightly tension-leveled strips
Small-to-medium cold rolling mills
Metal service centers
Steel coil distributors
Second-hand equipment exporters (Southeast Asia, Africa, Middle East, South America)
Start-up steel processing companies with limited budget
Before purchasing, buyers should consider the following:
Site Space – The line requires approximately 15–20 meters of floor space, depending on coil loading/unloading layout.
Power Supply – The 315 kW and 110 kW motors require a suitable electrical supply (voltage and frequency to be confirmed).
Foundation – A simple concrete foundation is sufficient; no heavy civil works are required.
Operator Skill – Basic training is sufficient due to the simple control system.
Spare Parts – Common industrial components (motors, bearings, sensors) are widely available.
The 950mm Rewinding Line (Y2026M04RL06L) is a well-maintained, practically specified, and highly cost-effective second-hand rewinding line. Key strengths include:
✅ Annual output: 4,500 tons
✅ Max coil weight: 16 tons
✅ Recoiling motor: 315 kW
✅ Max line speed: 160 m/min
✅ Shutdown year: 2026 (recent service history)
✅ On-site photos available for visual verification
✅ Optional disassembly and refurbishment services
