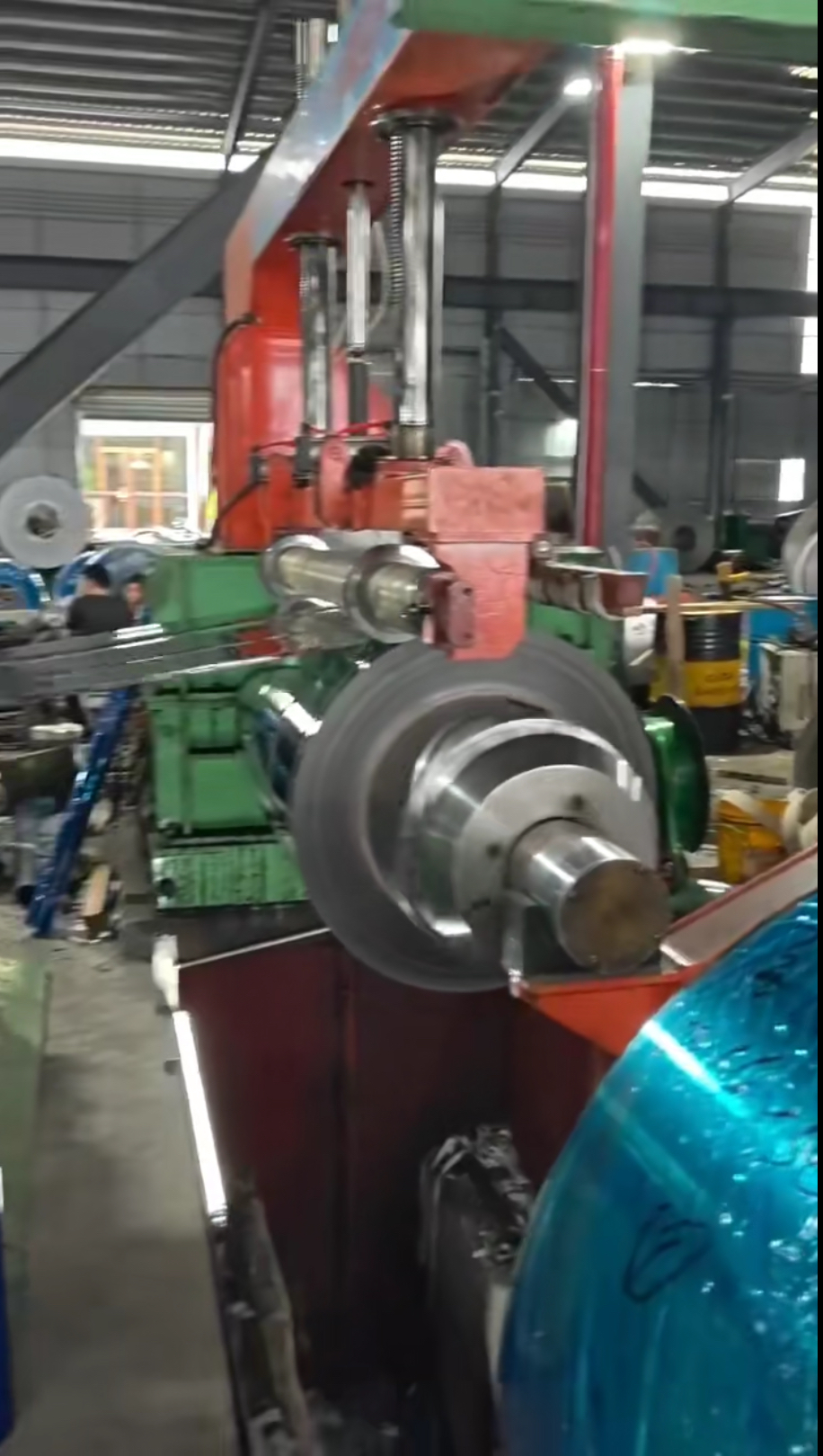

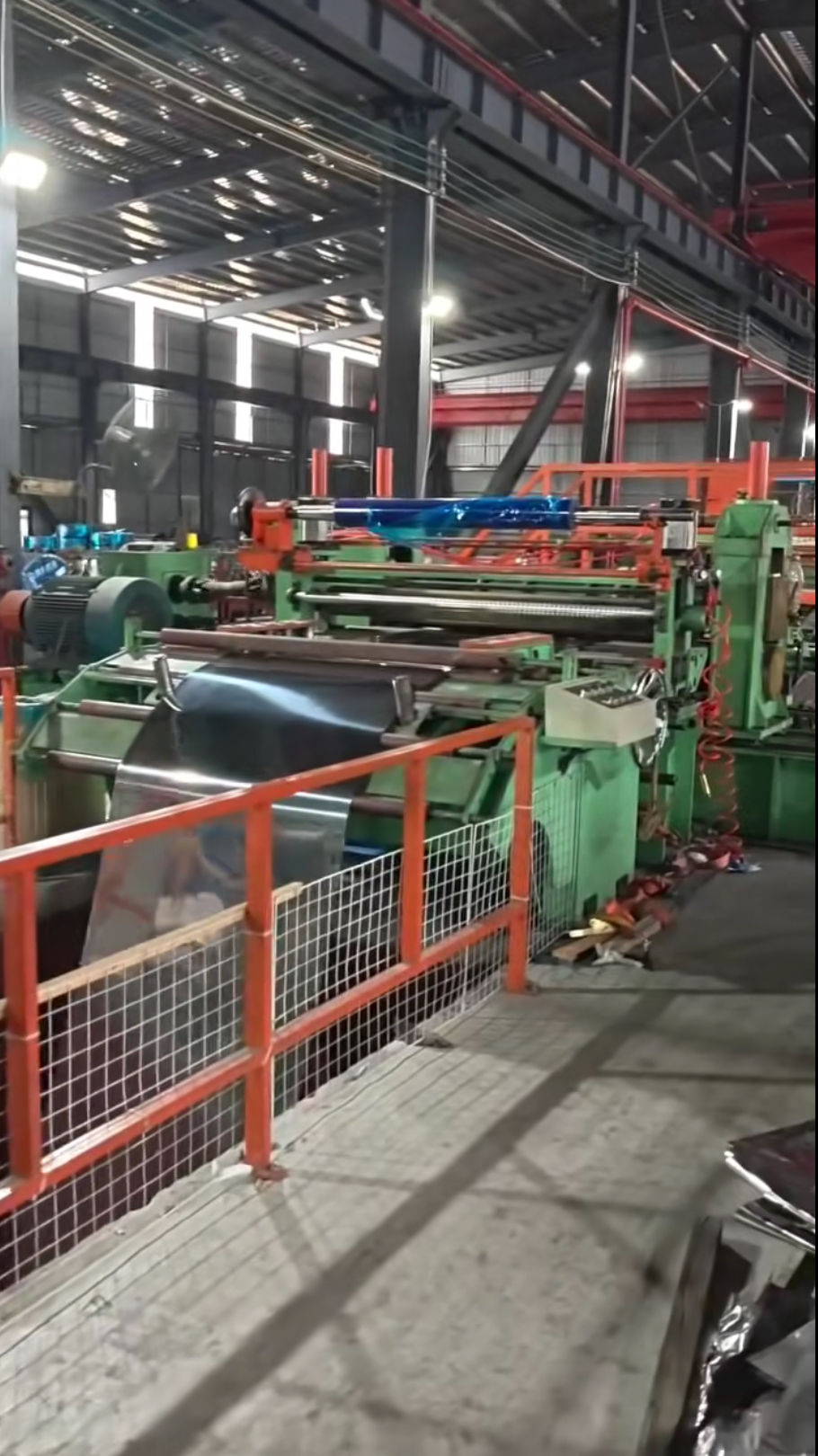

This state-of-the-art 1650mm Slitting Line represents the pinnacle of specialized stainless steel processing technology. Engineered exclusively for high-grade alloys (304/316L/430), this Stainless Steel Slitter combines robust construction with micron-level accuracy. Having completed its commissioning phase with ≤50 operational hours, it operates in certified as-new condition – fully debugged, calibrated, and backed by a comprehensive 12-month service package. The Rotary Shear Slitting Machine configuration ensures burr-free cuts and exceptional edge quality essential for premium applications.
1. Material Processing Capabilities
Exclusive Focus: Dedicated stainless steel processing (304, 316L, 430 grades)
Thickness Range: 0.3–3.0 mm (handles ultrathin foils to structural gauges)
Max Coil Width: 1650 mm (ideal for architectural cladding & industrial components)
Cutting Tolerance: ±0.1 mm width consistency via laser-guided centering
2. Power-Optimized Drive System
3. Cutting & Control Systems
Rotary Shear Slitting Machine: 60 included tungsten-carbide blades with precision spacers
Cross Shears: Hydraulic entry/exit units (±0.2mm trim accuracy; Ra ≤ 0.8 μm edge finish)
Forward Rotation VFD Control: 0.01 Hz frequency precision; eliminates torque fluctuations (reduces edge wave by 45% in 3.0mm 316L)
Cycle Efficiency: Entry shear removes defects in 1.2 seconds; exit shear delivers burr-free ends
Integrated Processing Sequence:

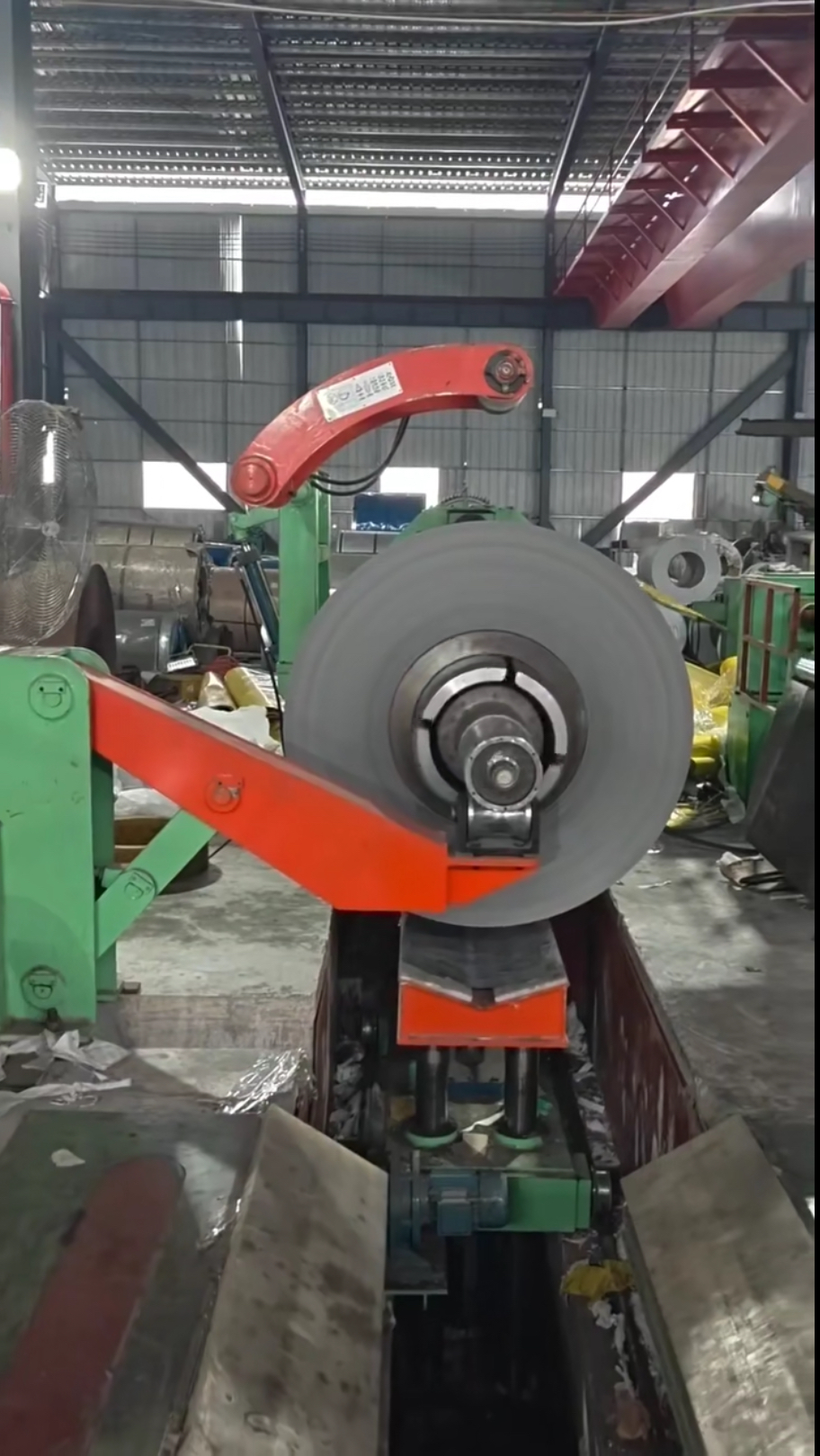

Uncoiler: 30KW back tension prevents material deformation during decoiling
Entry Cross Shear: Hydraulic trimming of leading defects
Pinch Rolls: 45KW drive ensures consistent feed rate synchronization
Slitting Arbors: 75KW rotary shear system with 200mm shaft (handles 60 blades)
Exit Cross Shear: Precision trimming of trailing edges
Rewinder: 110KW constant tension for defect-free recoiling
As-New Condition Certification:
Electromagnetic Compatibility (EMC) tested
Vibration levels < 2.5 mm/s (ISO 10816-3 compliant)
Calibration certificates for all critical tolerances
12-Month Post-Sale Service Package:
Quarterly preventive maintenance (bearing inspections, hydraulic fluid analysis)
Emergency callout response within 72 hours
40-hour operator certification on Forward Rotation VFD Control
Included Lifetime Support:
Blade sharpening protocols for tungsten-carbide tools
Tension calibration software updates
Remote diagnostics access
This 1650mm Slitting Line delivers new-equivalent performance at a fraction of the capital cost. As a purpose-built Stainless Steel Slitter, it eliminates compromises on alloy-specific processing parameters. The Rotary Shear Slitting Machine configuration ensures superior edge quality over laser or crush-cut alternatives, particularly on hardened grades. With its 75KW arbor drive and servo-synchronized tension zones, it achieves unprecedented stability on ultrathin materials (0.3mm) – a critical advantage in foil-intensive industries. The Forward Rotation VFD Control’s torque consistency directly translates to 15–20% yield improvement through reduced edge scrap. Backed by electromagnetic compliance certification and vibration-tested reliability, this system meets aerospace-grade precision standards while servicing industrial-scale volumes.
