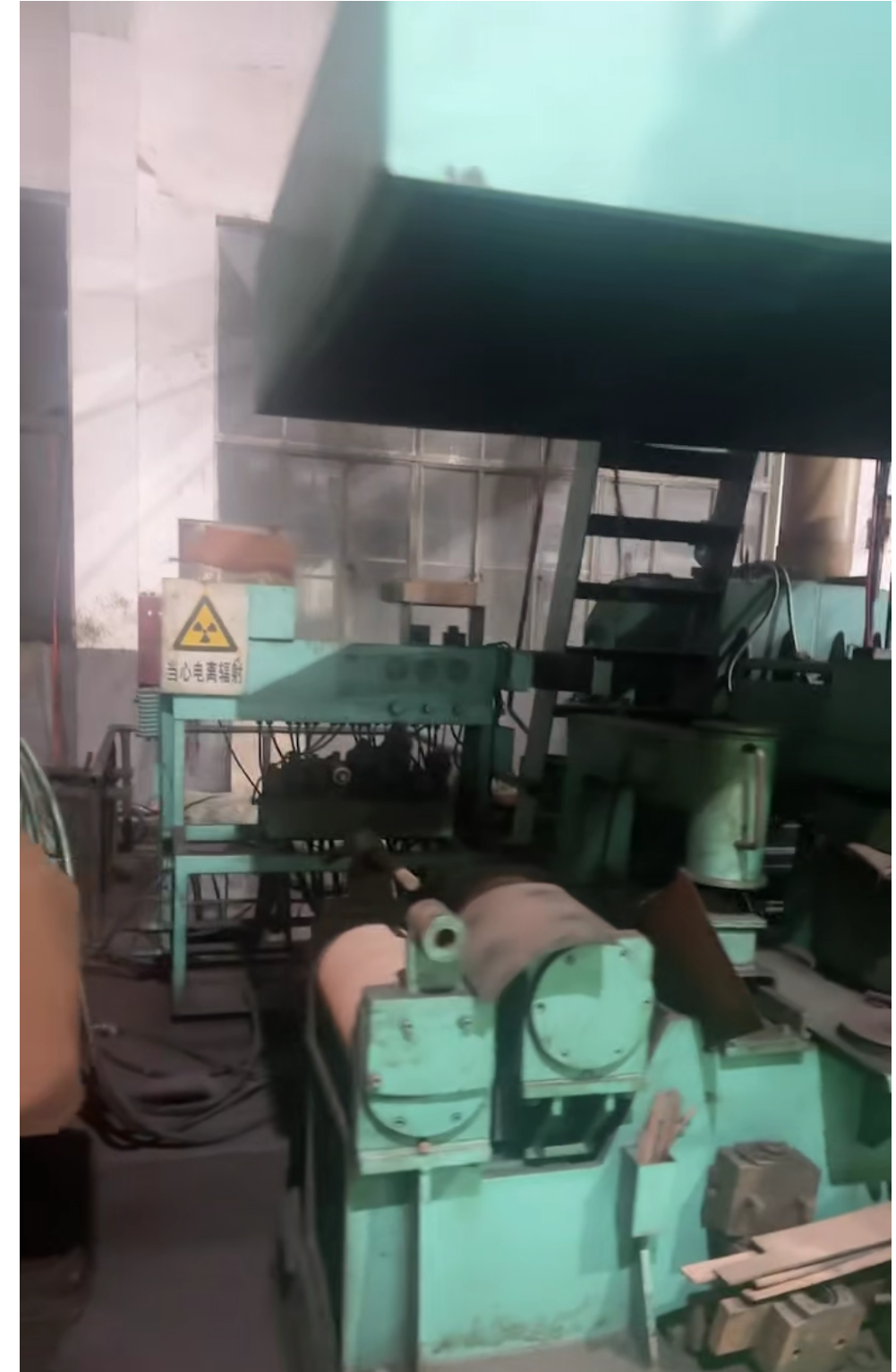

450 Cold Rolling Mill

1. Industry-Leading Engineering for Modern Metal Processing

In an era where conventional used cold rolling mill systems struggle with precision and flexibility, our 450mm Width Cold Roller sets a new benchmark. Designed specifically for high-tolerance Stainless Steel Cold Rolling, this mill integrates dynamic width adjustment, AI-driven controls, and multi-material versatility—delivering ±0.005 mm thickness consistency across stainless steel, copper, aerospace alloys, and specialty metals.

2. Core Technical Specifications & Performance

Table: Technical Superiority vs. Conventional Mills

3. Breakthrough Technology Integration

3.1 Dynamic Width Adjustment System

• Hydraulic Side Guides: Adjust width from 100–450 mm in ≤4.5 minutes.

• Edge Crack Prevention: 40% reduction in stainless/aluminum ultra-thin gauges (0.05 mm).

• No Shim Requirements: Tool-free changeovers vs. 45+ minutes on used cold rolling mill equipment.
  3.2 Thickness Control Revolution

• Gamma-Ray Monitoring: Corrects deviations >0.3% within 0.2 seconds.

• Dual-Mode Processing:

• Ultra-Thin Mode: 0.05–0.3 mm (e.g., medical 316L foil).

• Structural Mode: 0.3–6.0 mm (e.g., Inconel 718 aerospace plates).
  3.3 Siemens S7-1500 PLC Automation

• AI Roll Force Prediction: 90% fewer trial runs vs. manual systems.

• Automatic Crown Compensation: Maintains flatness ≤2 I-units at 30 m/min.

• Real-Time Analytics: 1,000 data points/sec for predictive maintenance.

4. Industry-Specific Applications

◉ Stainless Steel Cold Rolling Excellence

• Medical/Gastronomy: 0.2 mm 316L foil (Ra ≤0.1 µm mirror finish).

• Architectural: 3.0 mm 430 stainless with ≤0.5% thickness deviation.
  ◉ Electronics & Aerospace

• Phosphor bronze shims: 0.1 mm × 450 mm (±0.002 mm tolerance).

• Inconel 718 sheets: 15 m/min rolling under AI-controlled tension.
  ◉ Energy & Automotive

• Copper busbars: 30 m/min annealing-sensitive processing.

• Titanium battery plates: 5 m/min heavy reductions (6.0 mm → 3.5 mm).

5. Operational & Economic Advantages

5.1 Productivity Metrics

• Speed Flexibility: Optimize 5 m/min (titanium) to 30 m/min (copper).

• Scrap Reduction: <0.8% head/tail loss vs. 3–5% on used cold rolling mill lines.

• Uptime Guarantee: Vibration sensors predict bearing failures 200 hours early.
  5.2 Sustainability Leadership

• Regenerative Drives: 22% energy recovery during deceleration.

• Closed-Loop Filtration: 5 µm emulsion purification (zero wastewater).
  5.3 Safety & Compliance

• SIL 3 Emergency Stop: Halts rolls in <0.15 seconds.

• Touchless Threading: Laser-guided strip feeding eliminates operator risk.

6. Retrofit Solutions for Legacy Mills

Transform used cold rolling mill assets with bolt-on upgrades:

• Width Adjustment Kits: Retrofit hydraulic side guides in 72 hours.

• PLC Control Overlays: Integrate Siemens S7-1500 without rewiring.

• Energy Recovery Modules: Slash kWh/ton by 30% via regenerative drives.

7. Technical Specifications Summary

8. ROI Analysis

• Cost Savings: $18.50/ton reduced energy/scrap vs. used cold rolling mill.

• Quality Premium: 25% higher pricing for medical/aerospace tolerances.

• Payback Period: <14 months at 1,500-ton/month production.
