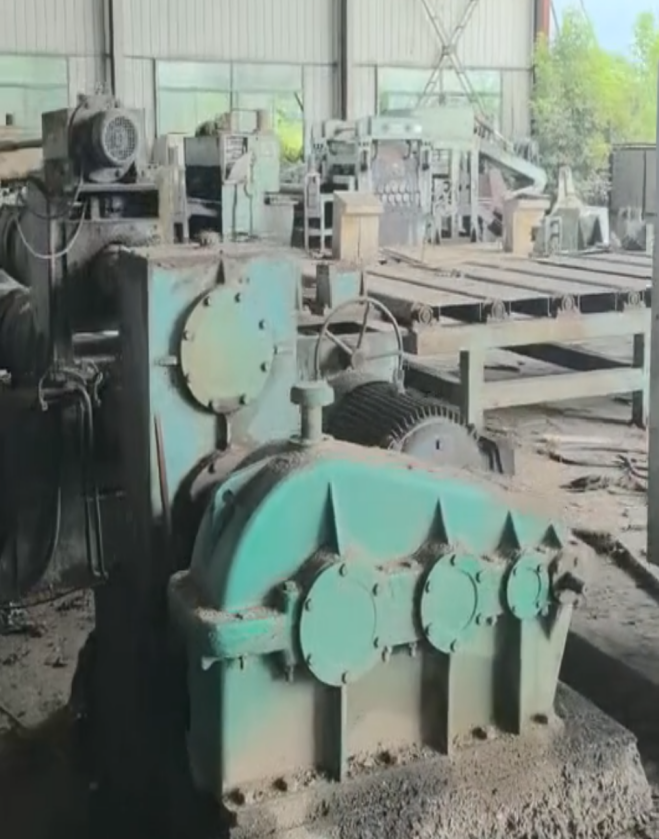

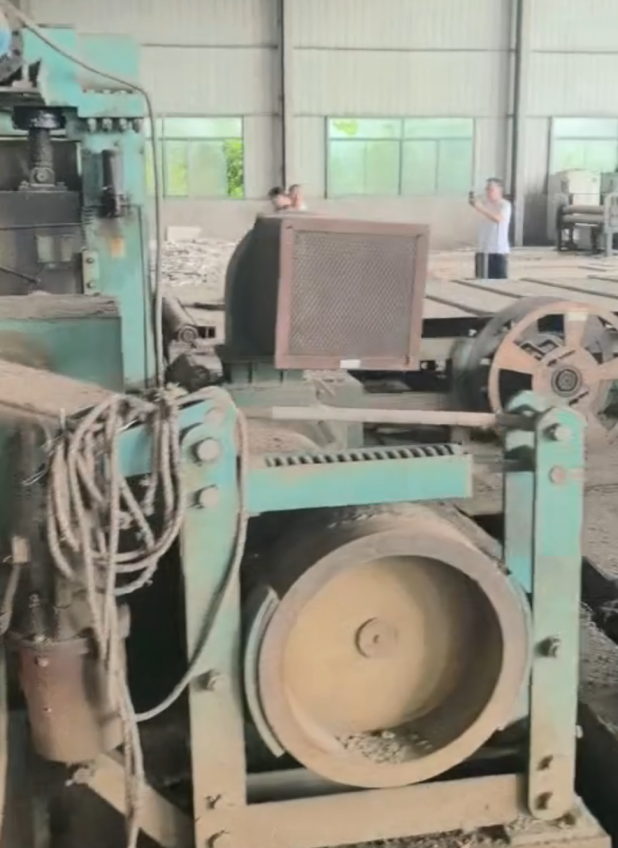

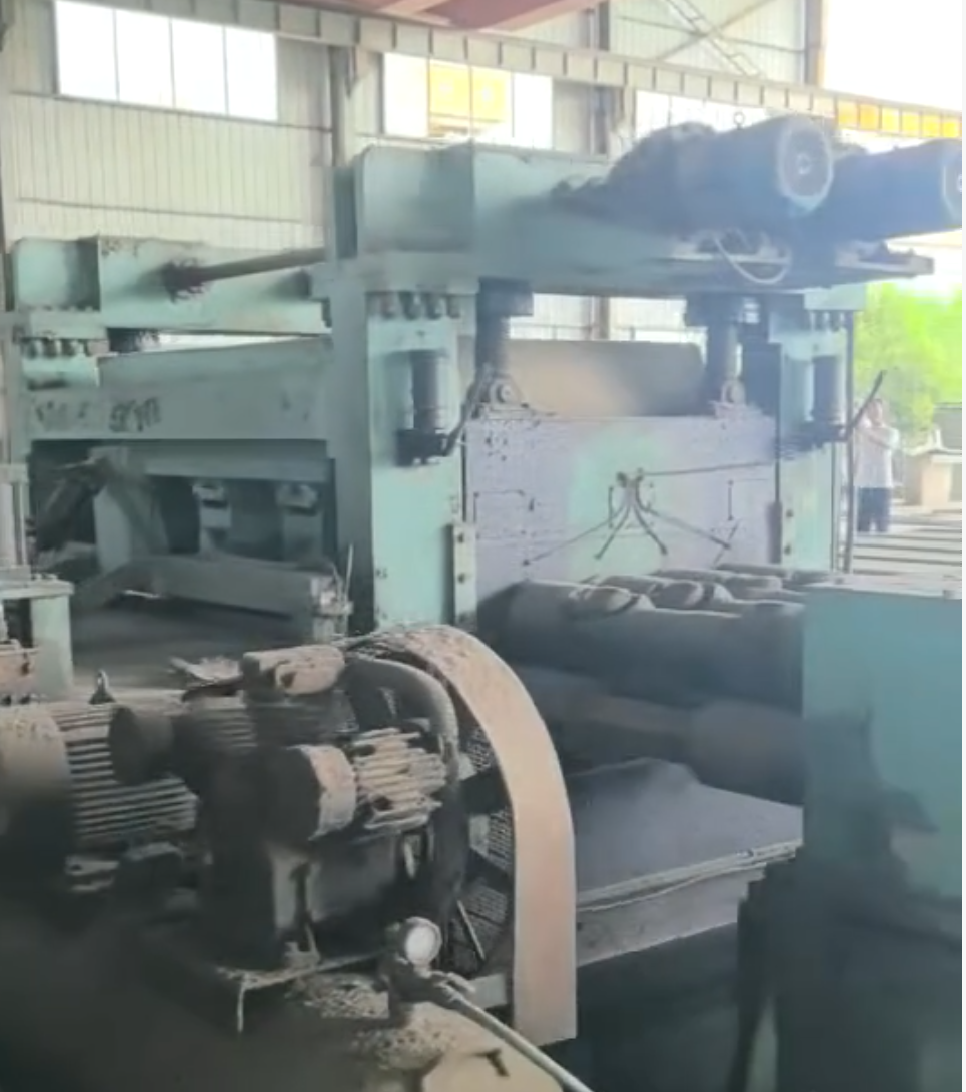

This industrial-grade Cut-to-Length Line represents advanced engineering for heavy plate processing applications. Manufactured by Wuxi Jianfa in 2014, this system incorporates a sophisticated dual-stage leveling configuration that delivers exceptional performance across the complete 4-16mm thickness range. The machine's specialized design ensures reliable operation for both mild and stainless steel processing at maximum 2200mm width.
Key Specifications & Features:
| Category | Details |
|---|---|
| Commissioning Year | 2014 |
| Max. Processing Width | 2200 mm |
| Material Thickness Range | 4-16 mm |
| Compatible Materials | Mild Steel (MS), Stainless Steel (SS) |
| Rough Leveling Roll Diameter | 220 mm |
| Rough Leveling Motor | 75 kW |
| Finish Leveling Roll Diameter | 240 mm |
| Finish Leveling Motor | 185 kW |
Core Advantages & Technical Features:
Advanced Dual-Stage Leveling Technology: The line incorporates separate roughing and finishing leveling stations, each with optimized roll diameters and dedicated motor power. This sophisticated approach ensures complete material flattening by progressively removing deformities through controlled power application.
Optimized Power Distribution: With a 75kW motor for initial rough leveling and a substantial 185kW motor for precision finishing, the system provides exactly the right power for each processing stage, ensuring energy efficiency while delivering maximum leveling force where needed.
Heavy-Duty Roll Configuration: The progressive roll sizing - 220mm for roughing and 240mm for finishing - provides increasing leveling force through the system. The large finishing rolls particularly ensure complete flatness elimination in the final product.
Precision Thickness Coverage: Specifically engineered for the 4-16mm thickness range, this line offers ideal performance for medium to heavy plate applications, making it perfect for structural components, industrial machinery, and heavy equipment manufacturing.
Value Proposition:
This 2200mm Cut-to-Length Line delivers professional-grade plate processing capability with its advanced dual-stage leveling system. The optimized power distribution and specialized roll configuration ensure superior flatness quality across the entire 4-16mm thickness spectrum. For manufacturers requiring reliable, high-performance plate processing with exceptional flatness standards, this line represents outstanding value and operational readiness.
