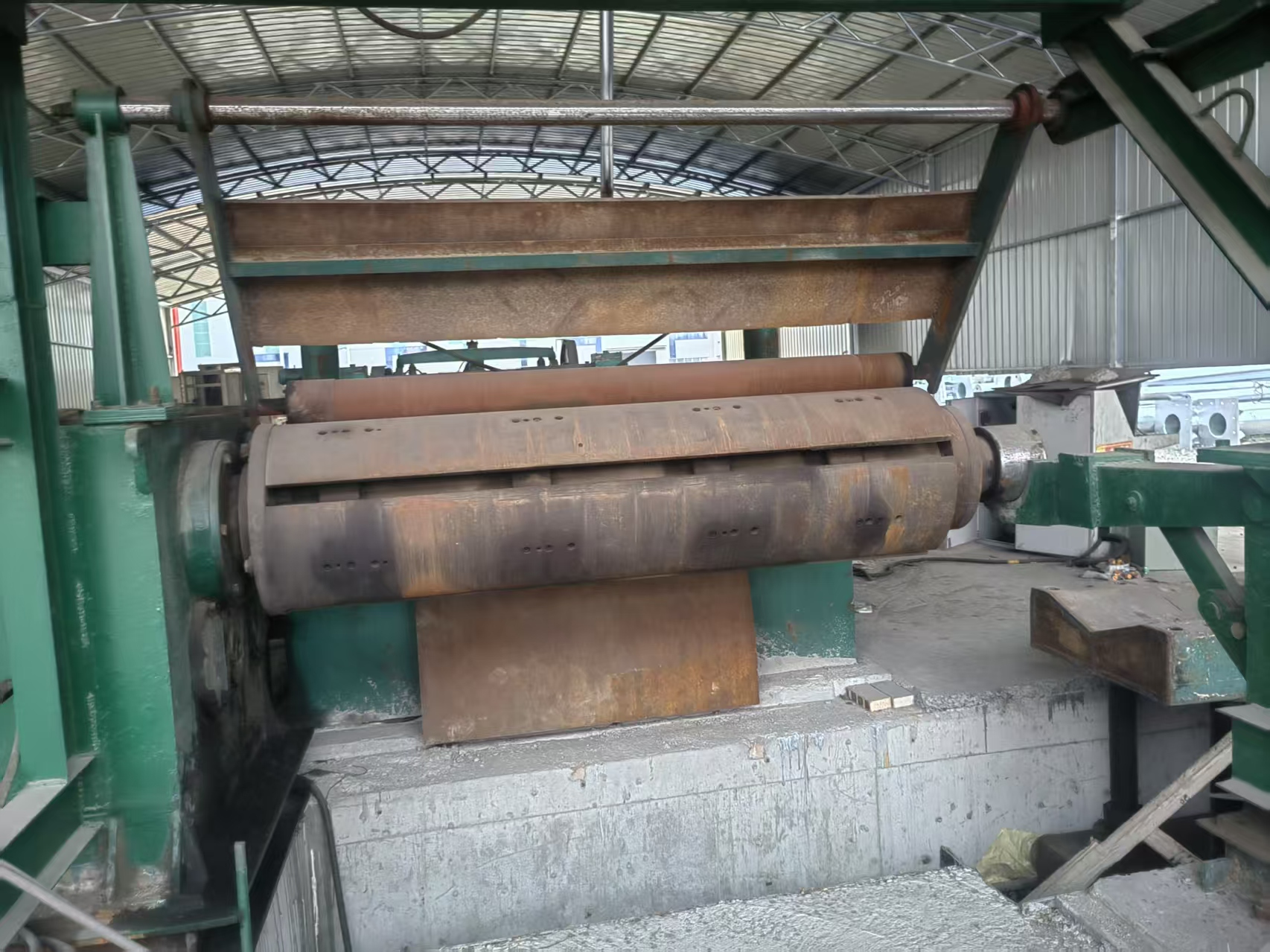

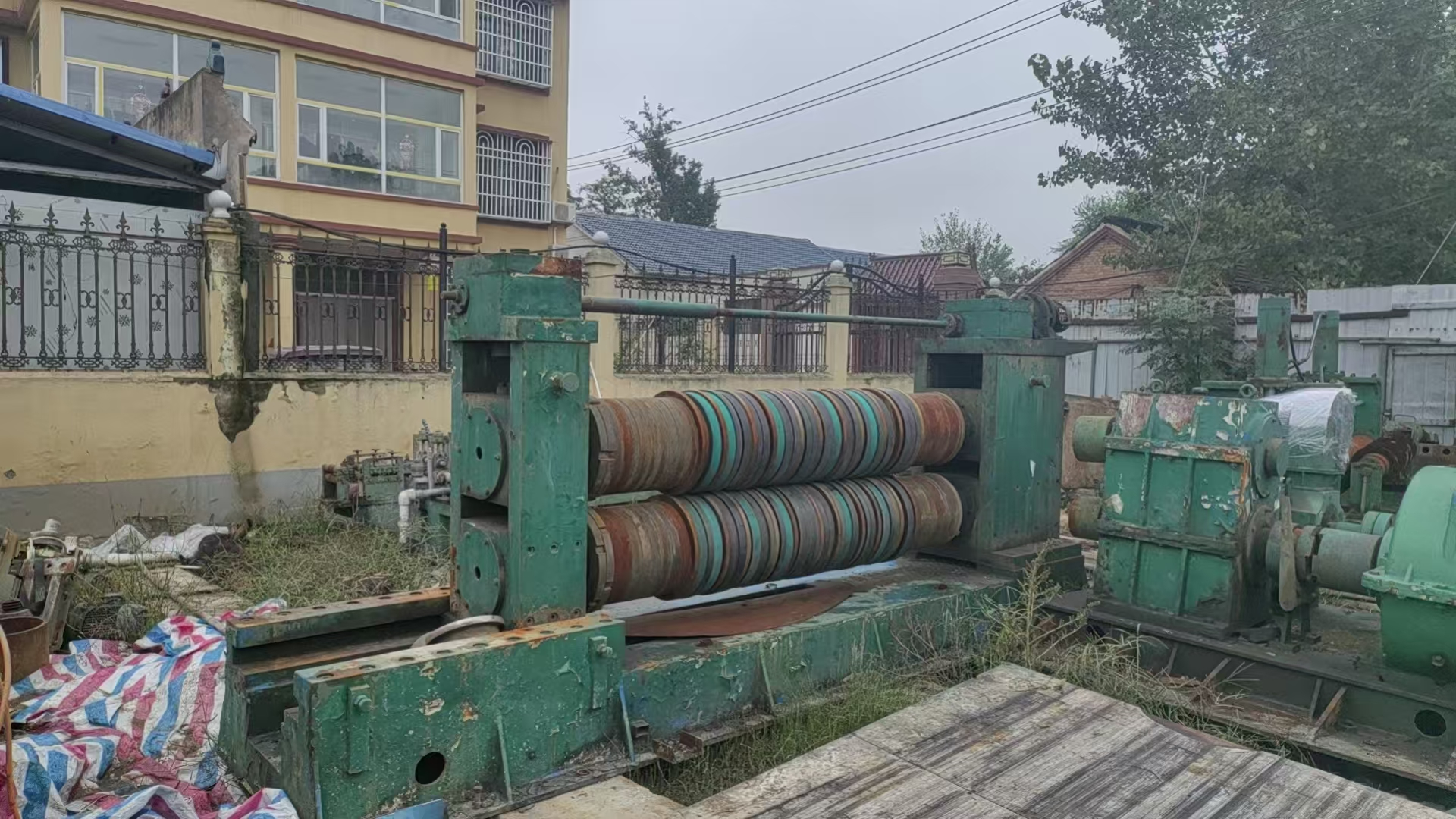

This is a 2000mm metal coil slitting line,primarily designed for longitudinally slitting wide metal coils into multiple narrower strips. It is suitable for processing medium-thick plates, high-strength steel, and ordinary carbon steel, and is widely used in industries such as metallurgy, automotive manufacturing, home appliances, and mechanical fabrication.
| Parameter | Specification |
|---|---|
| Model | Y2026M03STL18L |
| Thickness Range | 2 – 12 mm |
| Max. Width | 2000 mm |
| Applicable Materials | Medium-thick plates, high-strength steel, carbon steel, etc. |
| Slitting Arbor Diameter | Ø300 mm |
| Slitting Motor Power | 160 kw |
| Recoiling Motor Power | 220 kw |
Arbor Diameter: Ø300 mm

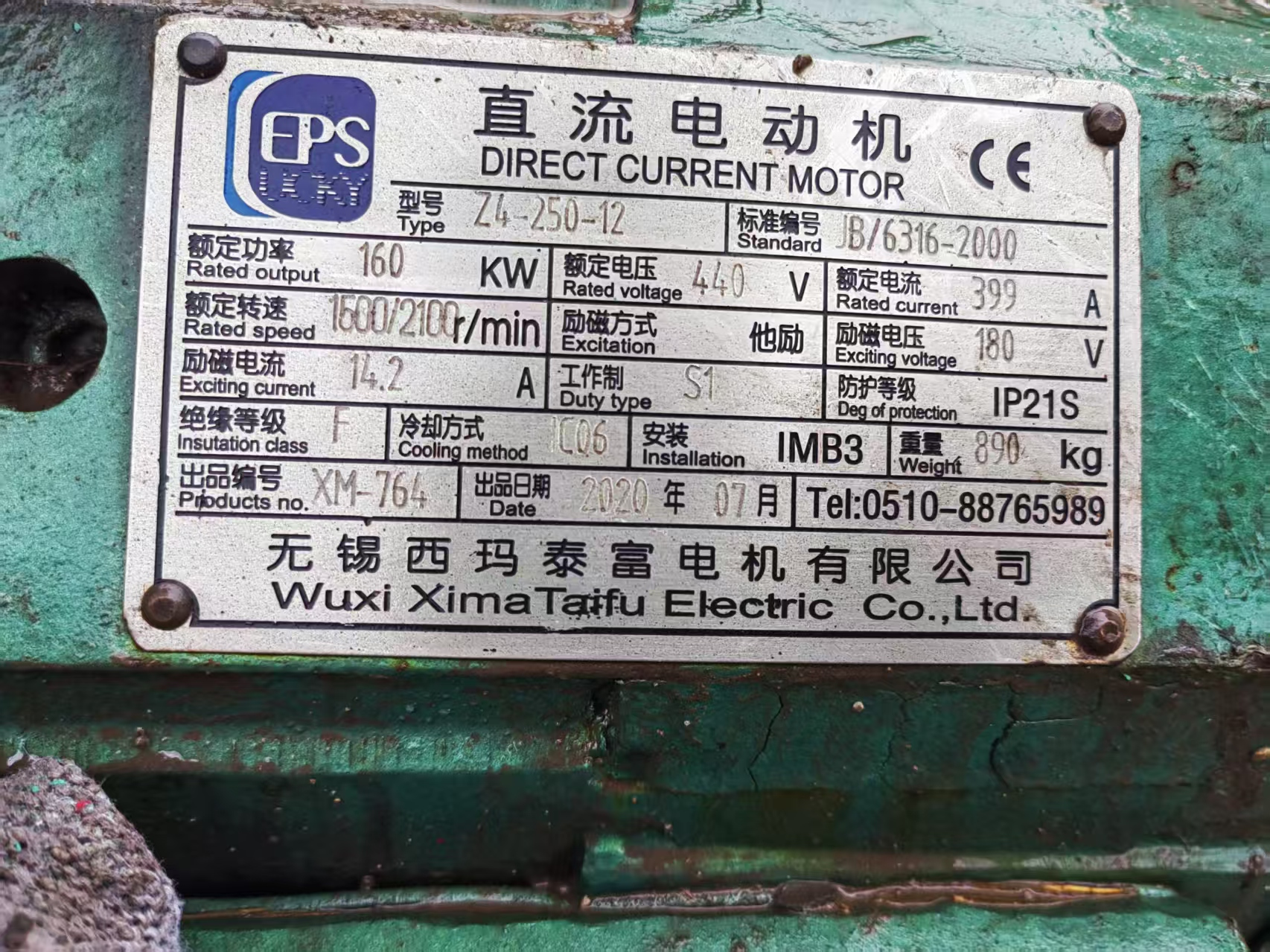

Main Motor Power: 160 kw
Features:
Large-diameter arbor with high structural rigidity
Capable of withstanding significant shearing forces for medium-thick and high-strength materials
Ensures operational stability and cutting accuracy during prolonged continuous production
Recoiling Motor Power: 220 kw
Features:
High-power motor drive for strong recoiling capacity
Suitable for high-speed, continuous production operations
Ensures finished coil compactness and surface quality
Strong Thick-Plate Processing Capability:
Maximum processing thickness of 12 mm, suitable for medium-thick plates and high-strength steel
Covers a wide range of material thicknesses
Wide Width Processing Capacity:
Maximum raw material width of 2000 mm, meeting the requirements for wide strip processing
Sufficient Power Configuration:
160 kw main motor for slitting unit
220 kw high-power motor for recoiling unit
Ensures strong performance for high-intensity, continuous production
High Structural Rigidity:
Slitting arbor diameter of Ø300 mm and robust key components
Maintains equipment stability and cutting precision under long-term, high-load operation
| Industry | Typical Application |
|---|---|
| Metallurgical Industry | Slitting of medium-thick plates, hot-rolled coils, high-strength steel |
| Automotive Manufacturing | Production of narrow strips for high-strength structural components |
| Machinery Manufacturing | Slitting of wide plates for engineering machinery |
| Steel Structure Industry | Slitting of thick plates for construction applications |
| Metal Processing | Reprocessing and slitting of medium-to-thick metal coils |
This 2000mm slitting line features strong thick-plate processing capability, wide width adaptability, sufficient power configuration, and high structural rigidity. It is especially suitable for slitting medium-thick plates and high-strength materials in the 2–12 mm range. The combination of a large-diameter slitting arbor and a high-power recoiling system ensures stable operation and high precision under high-intensity, continuous production conditions.
This equipment is an ideal solution for precision slitting of wide medium-to-thick coils in industries such as metallurgy, automotive manufacturing, and machinery fabrication, helping to increase production capacity, optimize process flow, and ensure finished product quality.
